Description
Ratio EV io6 Pro Single Socket 7.4kW/22kW EV Charger
The Ratio io6 Pro is a smart, durable EV charger designed for both home and workplace environments. Available in single-phase (7.4kW) and three-phase (22kW) models, it offers flexibility to suit various electrical setups.
Design & Safety
Built with integrated Type A RCD and 6mA DC fault protection, the io6 Pro ensures safe and compliant operation. The PEN fault detection feature eliminates the need for an earth rod on single-phase installations. The charger meets all major standards, including LVD 2014/35/EU, EMCD 2014/30/EU, BS EN61851-2019, and BS7671-2018.
Smart Charging Features
The io6 Pro includes a built-in MID-certified energy meter for accurate usage monitoring. Its dynamic load management automatically optimises power from your mains, while solar charging prioritises renewable energy when available. You can connect up to 32 chargers on a single grid connection, with power evenly distributed across all vehicles.
Connectivity & Control
Manage and monitor your charging sessions using the Ratio EV Charging App (available on Android and iOS). Bluetooth Low Energy simplifies setup, while secure AWS-based cloud storage protects your data. The app allows multi-user and multi-charger management, session planning, and real-time monitoring of charging activity.
Easy Commissioning & Security
Commissioning is simple through the Ratio app, where all settings are securely stored in the cloud. Protect your charger with secure authentication, or use plug-and-charge mode for quick access. The configurable cable lock adds another layer of safety and convenience.
Technical Specifications
-
Charging System: IEC 61851 Mode 3
-
Input Power: Single-phase or three-phase, 230?400V AC, 16A/32A
-
Output Power: 7.4kW or 22kW
-
Enclosure Rating: IP54
-

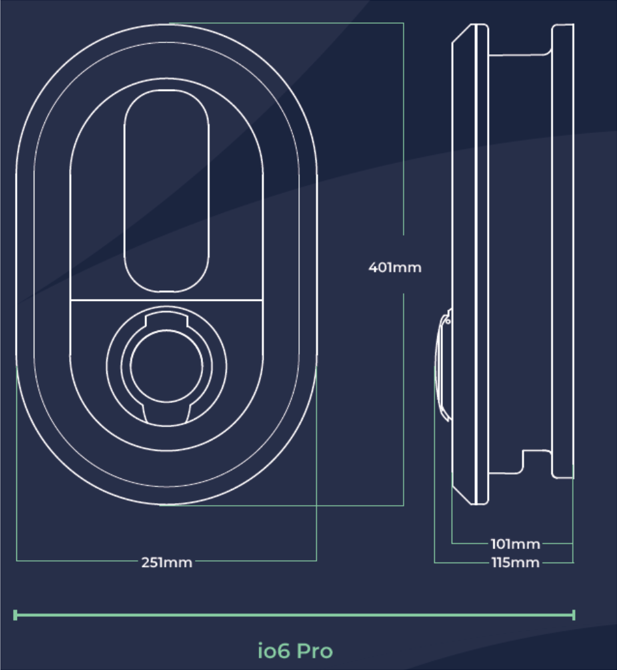

Dimensions: 400mm x 250mm x 105mm
-
Weight: 4kg
-
Operating Temp: -25?C to +40?C
-
Material: PC/ABS-V0 housing
-
Marking: UKCA certified
